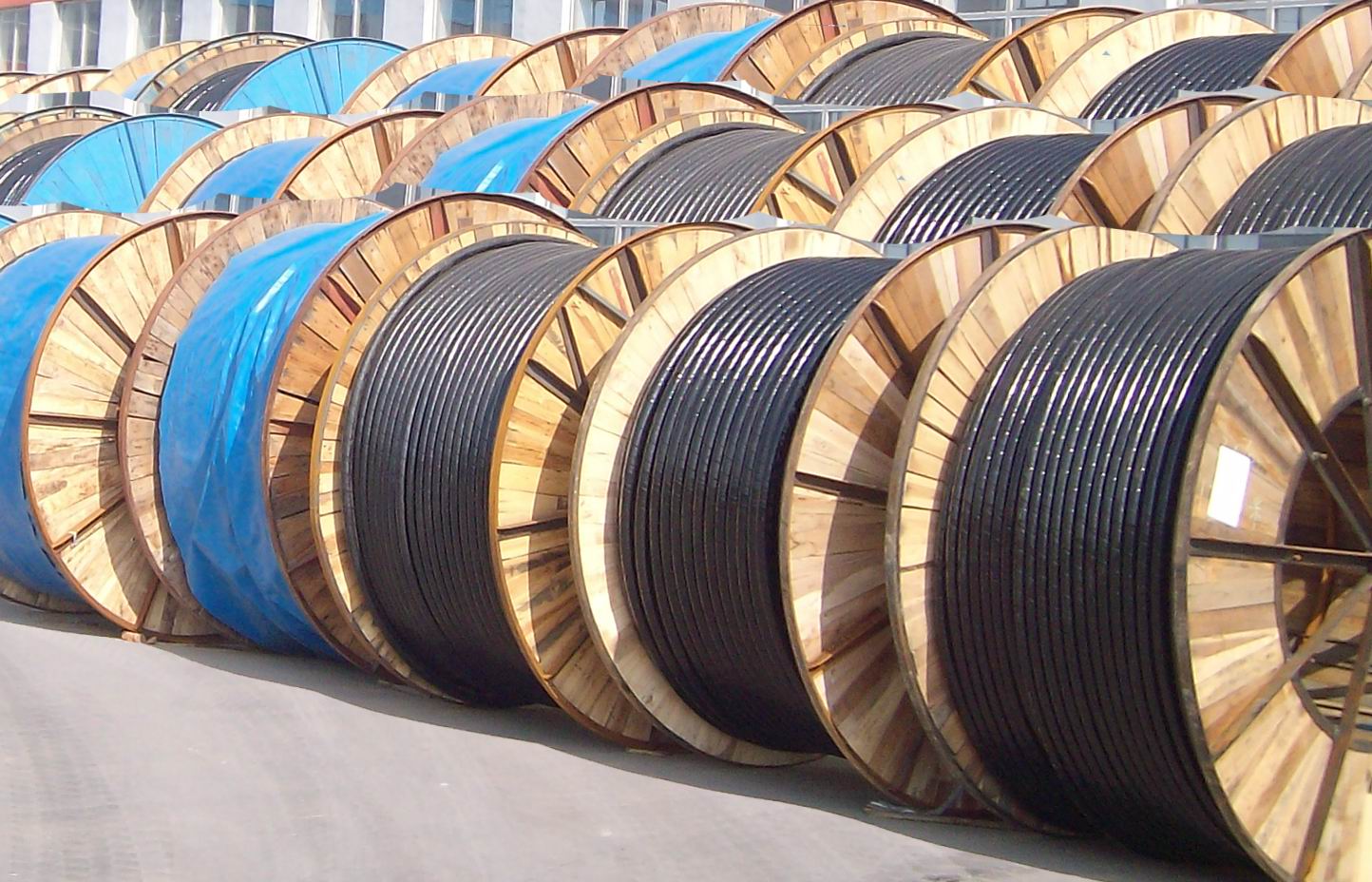

XLPE power cable
China Type | Description | Application | |
Cu | Al | ||
YJV | YJLV |
XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY | YJLY |
XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
|
YJV22 | YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
(Cu/XLPE/PVC/STA/PVC) | |||
YJV23 | YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable |
|
(Cu/XLPE/PVC/STA/PE) | |||
YJV62 | YJLV62 |
XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
|
YJV32 | YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint. |
(Cu/XLPE/PVC/SWA/PVC) | |||
YJV72 | YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 | YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
pvc power cable
Type | Description | Application | |
VV | VLV | PVC insulated PVC sheathed power cable |
To be laid at indoor, tunnel and tube . Cable cannot under take mechanism outside force |
VY | VLY | PVC insulated and PE sheathed power cable |
Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
VV22 | VLV22 |
PVC insulated steel belt armored and PVC sheathed power cable |
Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
VV23 | VLV23 |
PVC insulated steel belt armored and PE sheathed power cable |
Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
VV32 | VLV32 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground and mining well . Cable can undertake mechanism outside force |
VV33 | VLV33 |
PVC insulated fine steel wire armored PE sheathed power cable |
Can be laid at indoor, underground . Cable can under take mechanism outside force |
VV42 | VLV42 |
PVC insulated thick steel wire armored PE sheathed power cable |
Can be laid at indoor, underground,mining well . Cable can under take mechanism outside force |
VV43 | VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable |
Can be laid at indoor, underground , mining well and the places |
